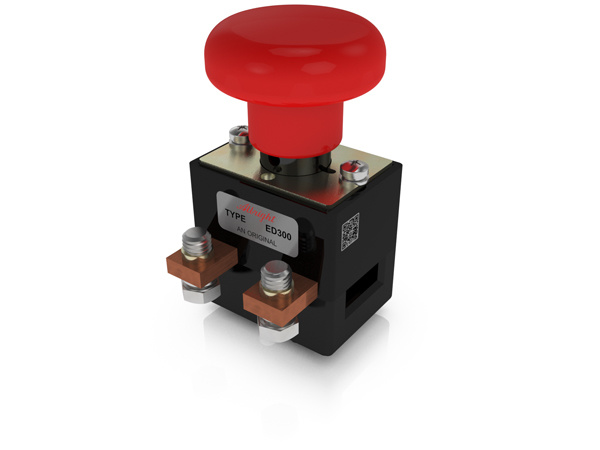

ED300AB-4 Albright 300A Heavy Duty Emergency Stop Switch 96V Max.

The Albright ED300AB range of switches has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults. Whilst the switches are primarily intended for use with battery-powered vehicles they are also suitable for use with static power systems. All types are capable of safely rupturing full load battery currents in the event of an emergency.

• Rated: 300A, 12V, 24V, 48V, 72V and 96V DC Maksimiimum.
• Single pole, single throw.
• Two M5 fixing screws at 48mm centers.
• Two M8 hex bolts for battery cable fixing.
• Suitable for voltages up to 96 volt dc, commonly used on 12-volt, 24 -volt, 48 volt and 72-volt dc electric vehicle systems.
• Weight: 600g

For a lockable version use ED300LB-3

Magnetic Blowouts

This unit is fitted with magnetic blowouts, the polarity marked on the Contact housing must be observed when connecting the main terminals.Notice! Albright products only to be sold for companies and projects in Finland. If you are planning to make a purchase to any other location, please Contact us to get your request forwarded to the nearest distributor or dealer. We are happy to assist you forward.
