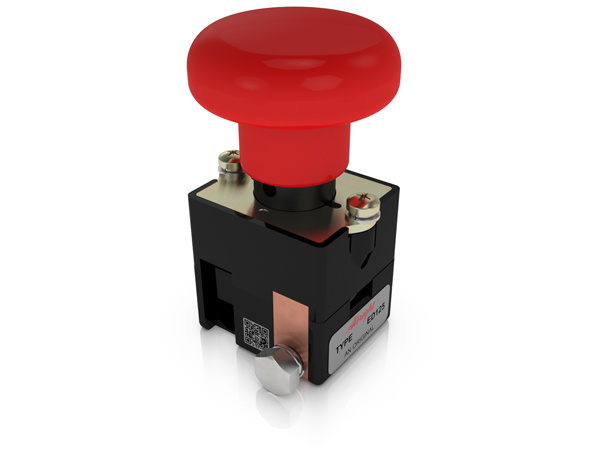

ED125LB-1 Albright 125A Battery Disconnect Switch with Key - 96V Max.
IMPORTANT! Albright products are only delivered to Finland. If you are to place an order with a delivery address outside Finland, please be noted we do cancel your order and do charge a 2% admission fee of the paid amount or a minimum of 30 € admission fee with all payment refunds.
Terms and Conditions
30-day returns accepted
Shipping: 1-3 Business Days
Albright heavy duty and compact, Battery Emergency-Stop Switch with a removable key and magnetic blowouts.
- Rated 125A, 96V dc Maksimiimum current.
- Single pole, single throw.
- Two M5 fixing screws at 48mm centers.
- Two M8 hex bolts for battery cable fixing.
- Supplied with 2 keys.
- With an open housing for inspection of the Contacts.
- 25mm diameter shaft clearance or panel hole.
- Total height including button: 102mm.
- Weight: 400g
Body Beneath Panel Dimensions
- Width: 55mm.
- Depth: 43mm.
- Depth including cable bolts approximately: 62mm.
