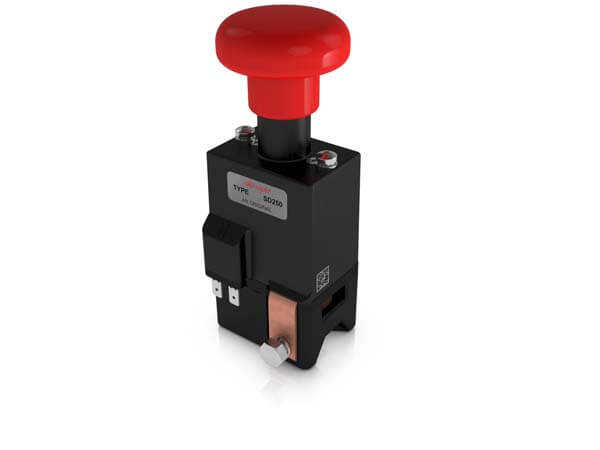

SD250LB-9 Albright 250A 48V Max. Emergency Stop Switch with Lock

    107,00 € 107,00 € 107.0 EUR

    107,00 €

    This combination does not exist.

    Add to Cart Buy Now


    Terms and Conditions
    30-day returns accepted
    Shipping: 1-3 Business Days

    Albright International 250A heavy-duty Battery Emergency-Stop Switch with lock and magnetic blowouts.

    • The SD250 combines the dual function of a manual disconnect and coil-operated line Contactor.
    • The benefits of this design include compact size and reduced installation costs combined with an electrical capacity sufficient for small and medium-size electric vehicles.
    • Whilst the switches are primarily intended for use with battery-powered vehicles, they are also suitable for use with static power systems.
    • All types are capable of safely rupturing full load battery currents in the event of an emergency.
    • Rated at 250 amps, 48V DC Maksimiimum current.
    • Single pole.
    • Internal fixing screws at 48mm centers.
    • Two M8 hex bolts for battery cable fixing.

    Dimensions

    • 25mm diameter shaft clearance or panel hole.
    • Total height including button: Approximately 170mm.
    Weight 1100g

    Body Beneath Panel Hole Dimensions

    • Width: 62mm.
    • Depth - excluding terminal bolts): 56mm.
    • Length: 104mm.
    Notice! Albright products only to be sold for companies and projects in Finland. If you are planning to make a purchase to any other location, please Contact us to get your request forwarded to the nearest distributor or dealer. We are happy to assist you forward.
