DC66-40P Albright 80A 12V DC Reversing Solenoid Very INT IP66
IMPORTANT! Albright products are only delivered to Finland. If you are to place an order with a delivery address outside Finland, please be noted we do cancel your order and do charge a 2% admission fee of the paid amount or a minimum of 30 € admission fee with all payment refunds.
Terms and Conditions
30-day returns accepted
Shipping: 1-3 Business Days

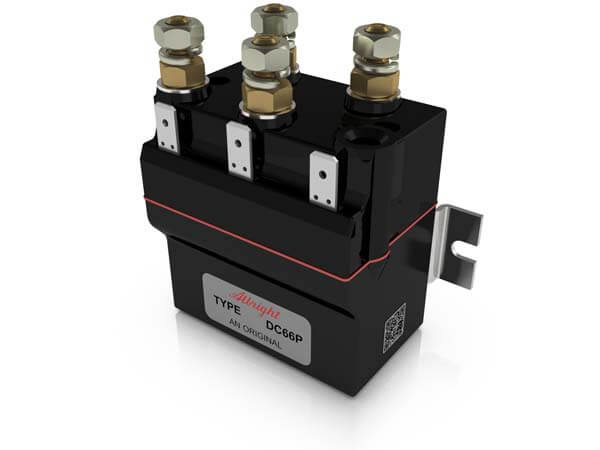

Albright DC66-40P 12 volt dc motor reversing switch solenoid without mounting bracket.
- The DC66P range of compact 80A Contactors follow the established design of the SW60 mono-block Contactors, which are configured specifically for motor reversing.
- The DC66P is ideally suitable for use with small battery-powered winches, vehicle-mounted cranes, small electric vehicles, etc.
- These Contactors have closed Contact housings and are sealed to inhibit the ingress of moisture or other Contaminations, they can, therefore, be used in environments which require protection to IP66.
- All the Contactors are manufactured to a very high standard and employ best quality materials: phenolic Contact housings, silver alloy Contacts and class H - 180° C) winding wire for the coils.
- Repair kit: not available on this unit.
- Height including terminals and coil base cap: 87.9mm.
- Width: 63.9mm.
- Depth - including bracket): 47.15mm.
- Weight 500g
Notice! Albright products only to be sold for companies and projects in Finland. If you are planning to make a purchase to any other location, please Contact us to get your request forwarded to the nearest distributor or dealer. We are happy to assist you forward.
