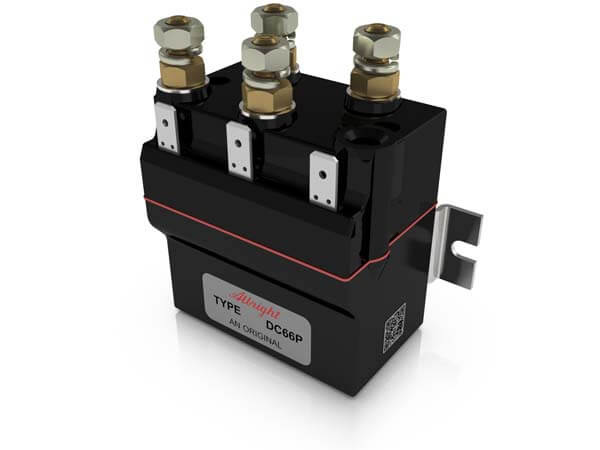

DC66-34P Albright 80A 48V DC Motor Reversing Solenoid CO IP66

    57,00 € 57,00 € 57.0 EUR

    57,00 €

    This combination does not exist.

    Add to Cart Buy Now


    Terms and Conditions
    30-day returns accepted
    Shipping: 1-3 Business Days

    Albright DC66-34P 48 volt dc motor reversing switch solenoid.

    • The DC66P range of compact 80A Contactors follow the established design of the SW60 mono-block Contactors, which are configured specifically for motor reversing.
    • The DC66P is ideally suitable for use with small battery-powered winches, vehicle-mounted cranes, small electric vehicles, etc.
    • These Contactors have closed Contact housings and are sealed to inhibit the ingress of moisture or other Contamination, they can, therefore, be used in environments which require protection to IP66.
    • All the Contactors are manufactured to a very high standard and employ best quality materials: phenolic Contact housings, silver alloy Contacts and class H - 180℃) winding wire for the coils.
    • Repair kit: not available on this unit.

    Dimensions

    • Height including terminals and coil base cap: 87.9mm.
    • Width: 63.9mm.
    • Depth - including bracket): 47.15mm.
    • Weight 500g

    Notice! Albright products only to be sold for companies and projects in Finland. If you are planning to make a purchase to any other location, please Contact us to get your request forwarded to the nearest distributor or dealer. We are happy to assist you forward.
