DC182-776L Albright 150A 12V DC - INT Motor Reversing Solenoid Contactor

    143,00 € 143,00 € 143.0 EUR

    143,00 €

    This combination does not exist.

    Add to Cart Buy Now


    Terms and Conditions
    30-day returns accepted
    Shipping: 1-3 Business Days

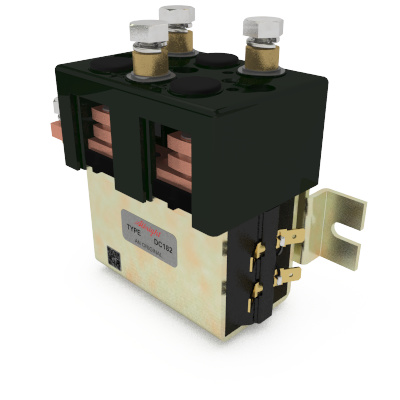

    Albright's DC182-776L, 12 volts DC - intermittent use, motor reversing solenoid Contactor with Large Tips, dust shields and an integral bracket.

    • The DC182 series of Contactors has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks, airport tractors, and such like.
    • They have double breaking main Contacts with silver alloy Contact tips, which are weld resistant, hardwearing and have excellent conductivity.
    • The DC182 main Contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energised simultaneously the Contact arrangement is open circuits.
    • Large tip version - on the normally open side only) with a low duty cycle coil.
    • Integral bracket, no tapped holes on coil casing.
    • Large tip version with low duty cycle coil.
    • Top cover reversed, 'T' Contact next to the bracket, positive next to the bracket and the bar Contact is on the right-hand side.
    • Weight 1860g

    Notice! Albright products only to be sold for companies and projects in Finland. If you are planning to make a purchase to any other location, please Contact us to get your request forwarded to the nearest distributor or dealer. We are happy to assist you forward.
