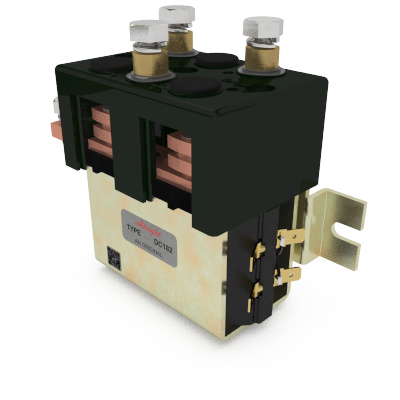

DC182-658 Albright 150A 24V DC - INT Motor Reversing Solenoid Contactor

Albright's DC182-658, 24 volt DC - intermittent use, motor reversing solenoid Contactor with dust shields and no bracket.

• The DC182 series of Contactors has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks, airport tractors, and such like.
• They have double breaking main Contacts with silver alloy Contact tips, which are weld resistant, hardwearing and have excellent conductivity.
• The DC182 main Contact circuit, designed for motor reversing, is such that it has a built in failsafe, so that if both coils are energised simultaneously the Contact arrangement is open circuits.
• Dust shields fitted.
• Diode and 33 Ohm resistor fitted to coils, poitive at bottom.
• No bracket. Tapped hole magnet frame.
• Weight 1860g

Associated Products

• 2159-39 Albright DC182 Solenoid Mounting Bracket.
• 2155-165 Albright Large Solenoid L-Shape Mounting Bracket - requires 2x)
